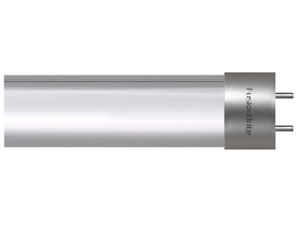

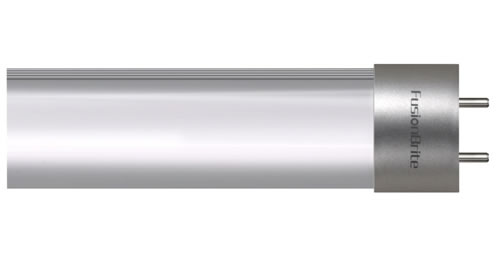

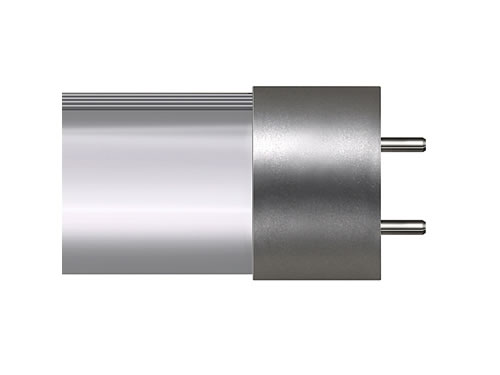

Rotatable End-Caps LED Tube Light
Applications
LED tube light with rotatable end caps can be widely used in a lot of locations such as homes, offices, galleries, shop windows, hotels, meeting rooms, parking garages, supermarkets and especially the areas with low temperature.
Features

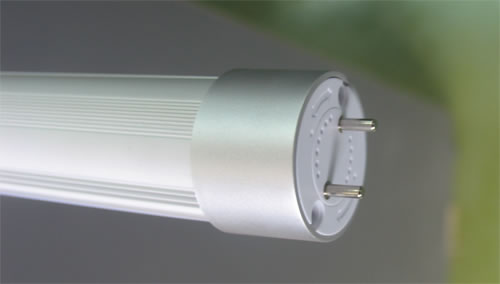

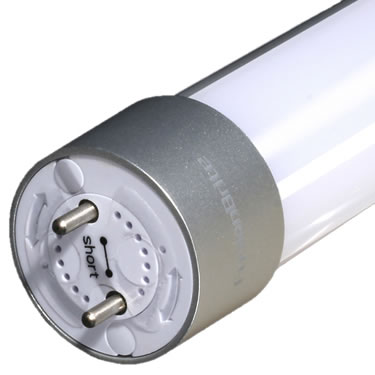

1.The LED tube light with rotatable end caps can adjust lighting direction by revolving the end caps.
2.Besides rotatable end caps, the high brightness, color rendering index and dimming functions are available for this rotating end caps T8 LED tube.
3.The rotating end cap T8 LED tube lights consist of LED, driving power supply, aluminum, PC cover and rotating end caps.
4.The rotatable end caps are designed and manufactured by our company. The rotation angle is 90°
5.LED tube light with rotatable end cap delivers uniform light without light spot or dark space.
6.With a long service life of over 50000hrs, this LED tube light can save more than 60% energy.
7.Our rotating end cap T8 LED tube lights are configured with high transparency PC cover in order to achieve higher luminous efficiency.
8.Self-developed driving power supply can effectively control the lifespan of the LED tube lights with rotating end caps. The luminous decay within 1000 hours is less than 3%.
Operation and Notes
1. The LED tube light with rotatable end caps can directly replace the traditional fluorescent tube.
2. For inductive bracket, there is no need to reform the line. Only need to replace the starter on the fixture with a LED fuse.
3. For electronic support, it shall remove the electronic ballast.
4. The rotating end cap T8 LED tube lights do not need special maintenance.
Parameters of Rotatable End-Caps LED Tube Light
Model No. | Dimension (mm) | Power (W) | LED type | LED QTY (pcs) | Work voltage (V) | Lumen (lm) | |
FB-T860-10-R | D28x600 | 10 | SMD2835 | 48 | AC85-265 | 850-1000 | |
FB-T890-15-R | D28x900 | 15 | SMD2835 | 72 | AC85-265 | 1250-1400 | |
FB-T8120-20-R | D28x1200 | 20 | SMD2835 | 96 | AC85-265 | 1700-1900 | |
FB-T8150-25-R | D28x1500 | 25 | SMD2835 | 120 | AC85-265 | 2000-2300 | |
FB-T8180-32-R | D28x1800 | 32 | SMD2835 | 144 | AC85-265 | 2350-2600 | |
FB-T8240-38-R | D28x2400 | 38 | SMD2835 | 240 | AC85-265 | 2980-3300 | |
FB-T845-7-R | D28x450 | 8 | SMD2835 | 60 | AC85-265 | 590-650 | |
FB-T875-10-R | D28x750 | 10 | SMD2835 | 60 | AC85-265V | 850-1000 | |
Color temperature: warm white 3000-3500K, natural white 4500-5700K, pure white 6000-6500K | |||||||
Cover options | Milky cover, strips-cover, transparent cover |
Packaging and Transportation
1.The LED tube light with rotatable end cap can be packed by square shape inner box or round shape inner box.
2.Transport by express, by air or by sea, at clients' option.
Model No. | Carton size L*W*H mm | QTY/Carton PCS | Net Weight KG | Gross weight KG |
FBT860-10-R | 660x258x230 | 20 | 6.20 | 8.20 |
FBT890-15-R | 960x258x230 | 20 | 8.40 | 11.30 |
FBT8120-20-R | 1260x258x230 | 20 | 10.60 | 13.40 |
FBT8150-25-R | 1560x258x230 | 20 | 15.60 | 19.20 |
FusionBrite Technology Co., Ltd. is a professional manufacturer and supplier of LED tube light with rotatable end cap in China. We also provide PIR sensor LED tube, emergency LED tube, electronic ballast compliant LED tube, combined LED tube, dimmable LED tube light, PL LED light, LED bulb light and LED lamp light. Our rotating end cap T8 LED tube lights are popular in America, Britain, Korea, France, Germany, Spain, Turkey, Southeast Asia, Australia and Africa. FusionBrite adopts sampling inspection and finished product inspection system to control the quality.
